Pictures of the 2010 Suzuki GSVR MotoGP bike sponsored by Rizla.

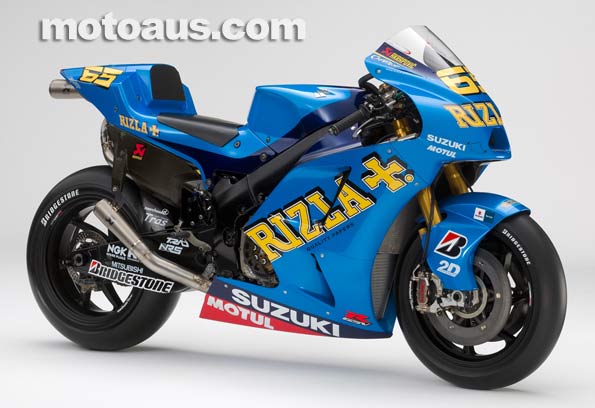

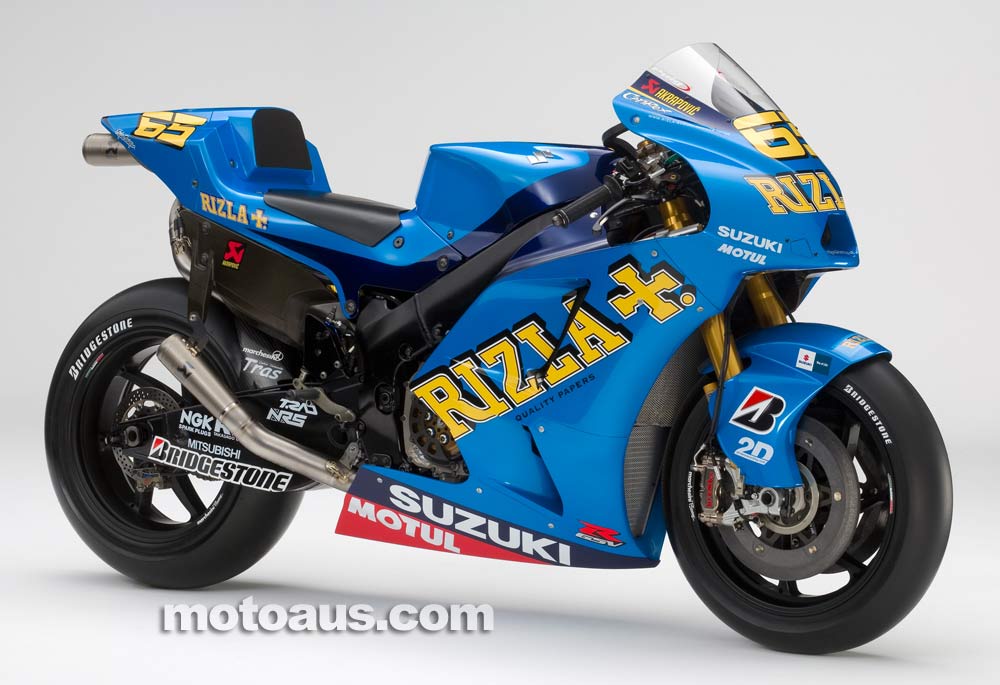

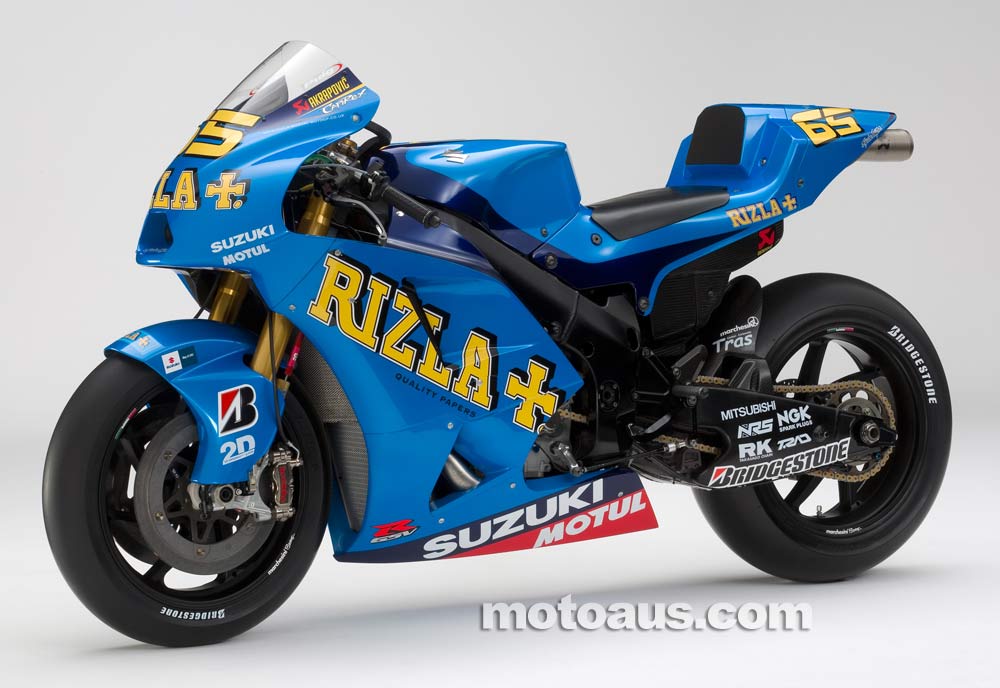

Suzuki GSVR 2010 Rizla MotoGP

Click on images for larger versions

Suzuki GSVR MotoGP Specifications

Engine Type: 4 stroke water cooled
V4 Displacement: 800cc
Max Power: 225+ ps / 18,000rpm
Valve Control and Type: Pneumatic (air control), DOHC four-valve
Carburation Type: Fuel injection
Lubrication System: Wet sump (Motul Lubricants)
Clutch: Dry multi plates (back torque reduction type)
Transmission: Six speed low friction constant mesh
Final Drive: Chain
Frame Type: Twin spar aluminum alloy frame

Suspension:
Front: Inverted type telescopic (Ohlins)
Rear: Link type (Ohlins)

Tyres: Bridgestone
Wheels: Front and rear: 429mm (16.5 inches)

Brake System:
Front: Double carbon disc (Brembo)
Rear: Single steel disc (Brembo)

Overall Length: 2080mm Overall
Width: 660mm
Overall Height: 1150mm
Weight:150+kg
Fuel Tank: 21L
Estimated top speed: 330+km/h
