Kawasaki ZX14 Close-up

Kawasaki ZX14 superbike

A look at the Kawasaki ZX14

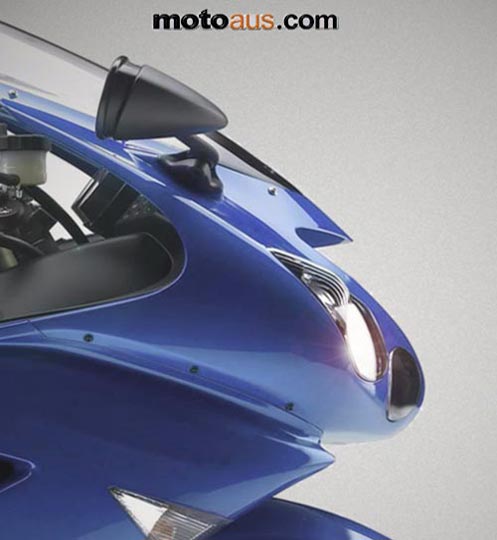

ZX-14 Kawasaki close up

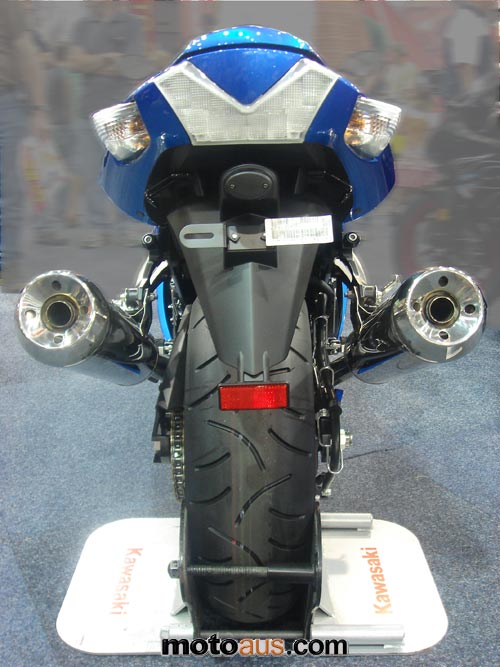

ZX-14 Kawasaki

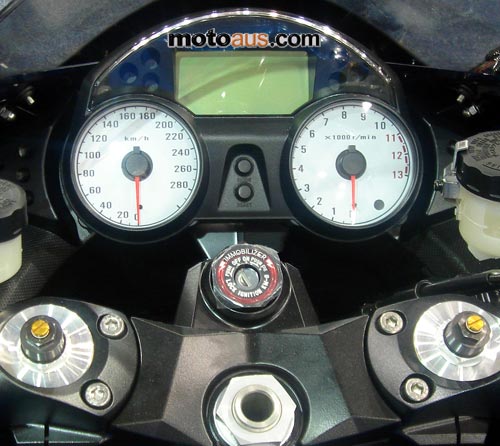

ZX-14 Kawasaki instruments

Specifications



Engine ZX1400A7F
Type Liquid-cooled, 4-stroke In-Line Four
Displacement 1,352 cm3
Bore and Stroke 84 x 61 mm
Compression ratio 12.0:1
Valve system DOHC, 16 valves
Fuel system Fuel injection: ø44 mm x 4 (Mikuni)
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump with oil cooler
Transmission 6-speed, return
Final drive Sealed Chain
Primary reduction ratio 1.541 (94/61)
Gear ratios:
  1st 2.625 (42/16)
  2nd 1.947 (37/19)
  3rd 1.545 (34/22)
  4th 1.333 (32/24)
  5th 1.154 (30/26)
  6th 1.036 (29/28)
Final reduction ratio 2.412 (41/17)
Clutch Wet multi-disc, manual
Frame Type Monocoque, aluminium
Wheel travel:
  front 117 mm
  rear 122 mm
Tyre:
  front 120/70ZR17M/C (58W)
  rear 190/50ZR17M/C (73W)
Caster (rake) 23°
Trail 94 mm
Steering angle (left/right) 30° / 30 °
Suspension (left/right)
  Front: 43 mm inverted fork with top-out springs
  Compression damping 13-way
  Rebound damping 11-way
  Spring preload Fully adjustable
  Rear: Bottom-Link Uni-Trak with gas-charged shock and top-out spring
  Compression damping Stepless
  Rebound damping Stepless
  Spring preload Fully adjustable
Brakes
  Front: Dual semi-floating 310 mm petal discs
  Caliper Dual radial-mount, opposed 4-piston, 4-pad
  Type Single 250 mm petal disc
  Caliper Opposed, twin-piston
Overall length 2,170 mm
Overall width 760 mm
Overall height 1,170 mm
Wheelbase 1,460 mm
Ground clearance 125 mm
Seat height 800 mm
Dry weight 215 kg (ZX1400A), 218 kg (ZX1400B)
Fuel capacity 22 litres
Maximum power 140 kW {190 PS} / 9,500 rpm (201, 202, 205, 303, 40A, 40B)
132.6 kW {180 PS} / 9,000 rpm (310)
78.2 kW {106 PS} / 8,500 rpm (40D)
Maximum power with Ram Air 147.1 kW {200 PS} / 9,500 rpm (201, 202, 205, 303, 40A, 40B)
Maximum torque 154 N·m {15.7 kgf·m} / 7,500 rpm (201, 202, 205, 303, 40A, 40B)
147.4 N·m {15.1 kgf·m} / 7,500 rpm (310)
114 N·m {11.6 kgf·m} / 4,500 rpm (40D)

2007 Kawasaki ZX-14
